SPRING09_ Bean后置处理器创建过程、SmartInstantiationAwareBeanPostProcessor预测方法调用

①. Bean后置处理器创建过程

• ①. 坏境准备,在BeanPostProcessor的无参构造器、postProcessBeforeInitialization以及postProcessAfterInitialization打上断点.以xml的方式启动容器


• ②. 注册所有的Bean的后置处理器,该方法在finishBeanFactoryInitialization方法之前执行

@Override
public void refresh() throws BeansException, IllegalStateException {synchronized (this.startupShutdownMonitor) {......//BeanFactory第一次开始创建的时候// 工厂创建:告诉子类去刷新自己内部的工厂,BeanFactory第一次开始创建的时候获取刷新好的bean工厂// 这里xml解析逻辑,也就是xml在这解析完之后,所以bean的定义信息就有了,也就是说BeanFactory第一次开始创建的时候,有xml解析逻辑ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();// Prepare the bean factory for use in this context.prepareBeanFactory(beanFactory);try {// Allows post-processing of the bean factory in context subclasses.postProcessBeanFactory(beanFactory);StartupStep beanPostProcess = this.applicationStartup.start("spring.context.beans.post-process");// 工厂增强:执行所有的BeanFactory后置增强器,利用BeanFactory对工厂进行增强或修改// 解释下:在finishBeanFactoryInitialization方法之前执行增强逻辑,可以在bean没有创建的时候,就对bean对象进行增强处理(配置类也会在这里解析)// Invoke factory processors registered as beans in the context.invokeBeanFactoryPostProcessors(beanFactory);// 注册所有的Bean的后置处理器 Register bean processors that intercept bean creation.registerBeanPostProcessors(beanFactory);beanPostProcess.end();......
}protected void registerBeanPostProcessors(ConfigurableListableBeanFactory beanFactory) {PostProcessorRegistrationDelegate.registerBeanPostProcessors(beanFactory, this);
}

• ③. PostProcessorRegistrationDelegate类中的方法代理了所有的后置增强、相当于后置处理器的管理员

• ⑤. 解析registerBeanPostProcessors方法前面代码


public static void registerBeanPostProcessors(ConfigurableListableBeanFactory beanFactory, AbstractApplicationContext applicationContext) {// [1]. 获取到容器中所有的BeanPostProcessor Bean的后置处理器String[] postProcessorNames = beanFactory.getBeanNamesForType(BeanPostProcessor.class, true, false);// Register BeanPostProcessorChecker that logs an info message when// a bean is created during BeanPostProcessor instantiation, i.e. when// a bean is not eligible for getting processed by all BeanPostProcessors.int beanProcessorTargetCount = beanFactory.getBeanPostProcessorCount() + 1 + postProcessorNames.length;beanFactory.addBeanPostProcessor(new BeanPostProcessorChecker(beanFactory, beanProcessorTargetCount));// 这里还加了一个Bean的检查处理器// Separate between BeanPostProcessors that implement PriorityOrdered,// Ordered, and the rest.List<BeanPostProcessor> priorityOrderedPostProcessors = new ArrayList<>();// 实现了优先级接口的List<BeanPostProcessor> internalPostProcessors = new ArrayList<>();// 内部用的List<String> orderedPostProcessorNames = new ArrayList<>();// 实现了排序接口的List<String> nonOrderedPostProcessorNames = new ArrayList<>();// 没有实现排序接口的for (String ppName : postProcessorNames) {if (beanFactory.isTypeMatch(ppName, PriorityOrdered.class)) {// 获取所有实现了优先级的PriorityOrderedBeanPostProcessor pp = beanFactory.getBean(ppName, BeanPostProcessor.class);priorityOrderedPostProcessors.add(pp);// 获取到了之后加入到优先级集合中if (pp instanceof MergedBeanDefinitionPostProcessor) {//如果处理是MergedBeanDefinitionPostProcessorinternalPostProcessors.add(pp);// 将其加入到内置处理器}}else if (beanFactory.isTypeMatch(ppName, Ordered.class)) { // bean是否为Ordered排序的orderedPostProcessorNames.add(ppName);// 加入排序集合中}else {nonOrderedPostProcessorNames.add(ppName);// 否则加入不是排序集合中}}// First, register the BeanPostProcessors that implement PriorityOrdered.// [1]. 首先注册实现了所有PriorityOrdered(优先级)接口的后置处理器sortPostProcessors(priorityOrderedPostProcessors, beanFactory);registerBeanPostProcessors(beanFactory, priorityOrderedPostProcessors);// Next, register the BeanPostProcessors that implement Ordered.// [2]. 接下来注册所有实现了Ordered(排序)接口的后置处理器List<BeanPostProcessor> orderedPostProcessors = new ArrayList<>(orderedPostProcessorNames.size());for (String ppName : orderedPostProcessorNames) {BeanPostProcessor pp = beanFactory.getBean(ppName, BeanPostProcessor.class);orderedPostProcessors.add(pp);if (pp instanceof MergedBeanDefinitionPostProcessor) {internalPostProcessors.add(pp);}}// 排序后执行sortPostProcessors(orderedPostProcessors, beanFactory);registerBeanPostProcessors(beanFactory, orderedPostProcessors);// Now, register all regular BeanPostProcessors.// [3]. 最后,注册所有普通的BeanPostProcessorsList<BeanPostProcessor> nonOrderedPostProcessors = new ArrayList<>(nonOrderedPostProcessorNames.size());for (String ppName : nonOrderedPostProcessorNames) {BeanPostProcessor pp = beanFactory.getBean(ppName, BeanPostProcessor.class);// 从容器中获取组件nonOrderedPostProcessors.add(pp);if (pp instanceof MergedBeanDefinitionPostProcessor) {internalPostProcessors.add(pp);}}.....
}

• ⑥. 从容器中获取到BeanPostProcessor组件

1. 这里会遍历,可以看到集合中有4条记录
2. 会分别去getBean,获取到这四个类型的Bean
3. 这四个对象会分别调用无参构造器进行初始化处理

// Now, register all regular BeanPostProcessors.
// [3]. 最后,注册所有普通的BeanPostProcessors
List<BeanPostProcessor> nonOrderedPostProcessors = new ArrayList<>(nonOrderedPostProcessorNames.size());
for (String ppName : nonOrderedPostProcessorNames) {BeanPostProcessor pp = beanFactory.getBean(ppName, BeanPostProcessor.class);// 从容器中获取组件nonOrderedPostProcessors.add(pp);if (pp instanceof MergedBeanDefinitionPostProcessor) {internalPostProcessors.add(pp);}
}

• ⑦. 注册RegisterBeanPostProcessors,Step into进去看看


• ⑧. 工厂提前保存所有增强器,方便在后面创建Bean的时候直接使用

/**保存所有的Bean的后置增强器 BeanPostProcessors to apply. */
private final List<BeanPostProcessor> beanPostProcessors = new BeanPostProcessorCacheAwareList();private static void registerBeanPostProcessors(ConfigurableListableBeanFactory beanFactory, List<BeanPostProcessor> postProcessors) {if (beanFactory instanceof AbstractBeanFactory) {// 所谓的注册就是将后置处理器保存到beanPostProcessors集合中 Bulk addition is more efficient against our CopyOnWriteArrayList there((AbstractBeanFactory) beanFactory).addBeanPostProcessors(postProcessors);}else {for (BeanPostProcessor postProcessor : postProcessors) {beanFactory.addBeanPostProcessor(postProcessor);}}
}public void addBeanPostProcessors(Collection<? extends BeanPostProcessor> beanPostProcessors) {this.beanPostProcessors.removeAll(beanPostProcessors);this.beanPostProcessors.addAll(beanPostProcessors);
}

• ⑨. 至此,注册四个后置处理器就结束了


②. SmartInstantiationAwareBeanPostProcessor预测方法调用

• ①. 接着上面的断点放行,可以看到来到了SmartInstantiationAwareBeanPostProcessor的predictBeanType方法,下面我们来进行具体的分析

• ②. 容器12大步 - 注册监听器,Spring时间监听机制在这里开始初始化

• ③. 获取ApplicationListener在IOC容器在bean注册的名字


protected void registerListeners() {// Register statically specified listeners first.for (ApplicationListener<?> listener : getApplicationListeners()) {getApplicationEventMulticaster().addApplicationListener(listener);}// Do not initialize FactoryBeans here: We need to leave all regular beans//获取ApplicationListener在IOC容器在bean注册的名字 uninitialized to let post-processors apply to them!String[] listenerBeanNames = getBeanNamesForType(ApplicationListener.class, true, false);for (String listenerBeanName : listenerBeanNames) {getApplicationEventMulticaster().addApplicationListenerBean(listenerBeanName);// 获取所有的容器中的监听器名字,并保存他们的名字}// Publish early application events now that we finally have a multicaster...Set<ApplicationEvent> earlyEventsToProcess = this.earlyApplicationEvents;this.earlyApplicationEvents = null;if (!CollectionUtils.isEmpty(earlyEventsToProcess)) {for (ApplicationEvent earlyEvent : earlyEventsToProcess) {getApplicationEventMulticaster().multicastEvent(earlyEvent);}}
}@Override// 获取某个类型的组件在容器中的所有名字
public String[] getBeanNamesForType(@Nullable Class<?> type, boolean includeNonSingletons, boolean allowEagerInit) {assertBeanFactoryActive();return getBeanFactory().getBeanNamesForType(type, includeNonSingletons, allowEagerInit);
}

• ④. Spring底层获取某个类型是先拿到所有的beanDefinitionNames名称集合,遍历这个名称集合,再通过mergedBeanDefinitions去获取到具体的BeanDefinition的信息,进行获取到类型(这个方法很笨)
  因为Spring没有直接保存Class - name[]定义信息的map

// 获取某一个组件在容器中的名字。
private String[] doGetBeanNamesForType(ResolvableType type, boolean includeNonSingletons, boolean allowEagerInit) {List<String> result = new ArrayList<>();//因为Spring没有直接保存Class - name定义信息。只能先拿出beanName,再看是否是指定的类型 Check all bean definitions.for (String beanName : this.beanDefinitionNames) {// Only consider bean as eligible if the bean name is not defined as alias for some other bean.if (!isAlias(beanName)) {try {RootBeanDefinition mbd = getMergedLocalBeanDefinition(beanName);// Only check bean definition if it is complete.if (!mbd.isAbstract() && (allowEagerInit ||(mbd.hasBeanClass() || !mbd.isLazyInit() || isAllowEagerClassLoading()) &&!requiresEagerInitForType(mbd.getFactoryBeanName()))) {boolean isFactoryBean = isFactoryBean(beanName, mbd);//是不是FactoryBeanBeanDefinitionHolder dbd = mbd.getDecoratedDefinition();boolean matchFound = false;boolean allowFactoryBeanInit = (allowEagerInit || containsSingleton(beanName));boolean isNonLazyDecorated = (dbd != null && !mbd.isLazyInit());if (!isFactoryBean) {if (includeNonSingletons || isSingleton(beanName, mbd, dbd)) {// 只要是没有创建组件的,都会进来这里,这里是cat2进来了,这是因为其他Spring组件在前面都已经创建了,比如后置处理器等matchFound = isTypeMatch(beanName, type, allowFactoryBeanInit);// 是否类型匹配

• ⑤. isTypeMatch方法可以通过后置处理器可以返回自定义的类型

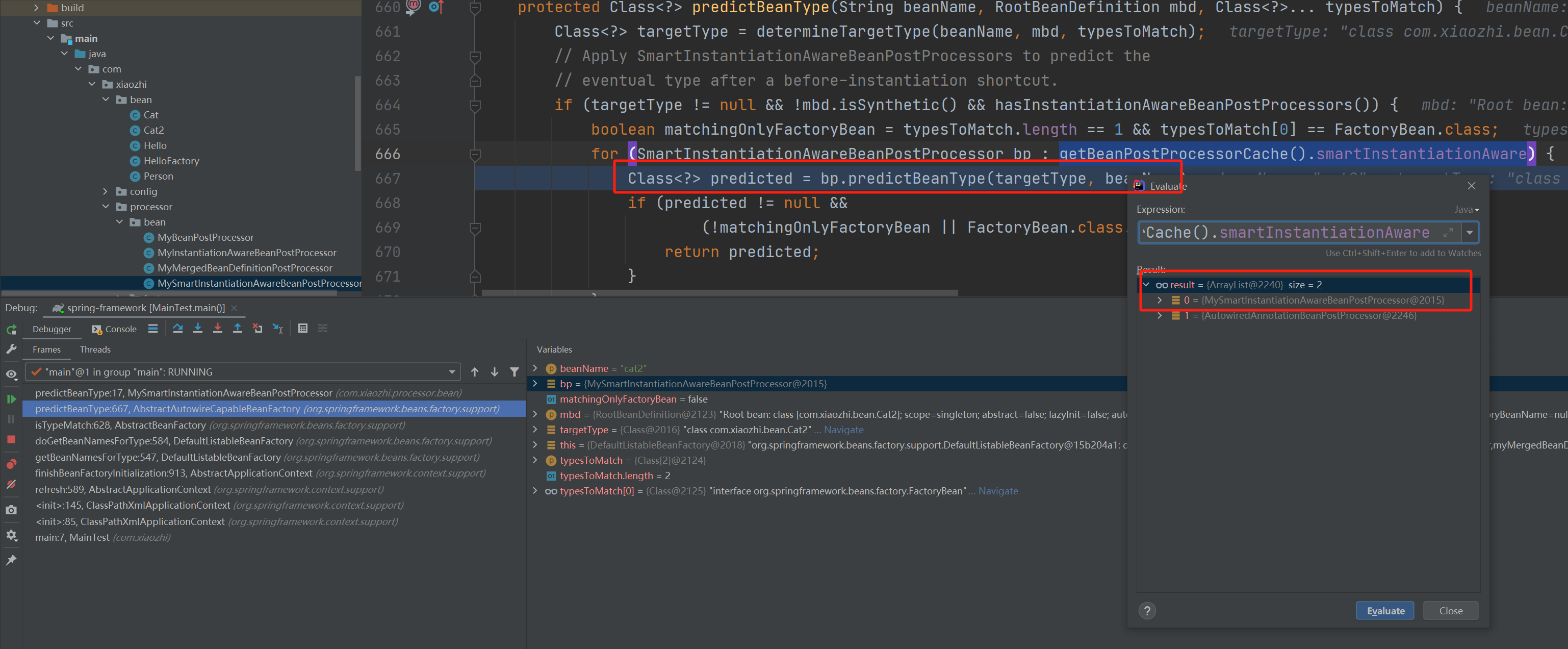

• ⑥. 调用我们自己实现了SmartInstantiationAwareBeanPostProcessor接口的predictBeanType方法


protected Class<?> predictBeanType(String beanName, RootBeanDefinition mbd, Class<?>... typesToMatch) {Class<?> targetType = determineTargetType(beanName, mbd, typesToMatch);// Apply SmartInstantiationAwareBeanPostProcessors to predict the// eventual type after a before-instantiation shortcut.if (targetType != null && !mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) {boolean matchingOnlyFactoryBean = typesToMatch.length == 1 && typesToMatch[0] == FactoryBean.class;for (SmartInstantiationAwareBeanPostProcessor bp : getBeanPostProcessorCache().smartInstantiationAware) {Class<?> predicted = bp.predictBeanType(targetType, beanName);if (predicted != null &&(!matchingOnlyFactoryBean || FactoryBean.class.isAssignableFrom(predicted))) {return predicted;}}}return targetType;
}

• ⑦. 细节点:为什么这里是传了一个cat2来了呢？

1. 这是因为这个方法可以改变返回的类型,我们在进行到执行registerListeners方法的时候,其他的组件(比如myBeanPostProcessor)已经完2. 成了组件的创建,我们自定义的Cat2还没有完成创建
2. 这里会把没有完成创建的实列都进行走predictBeanType方法

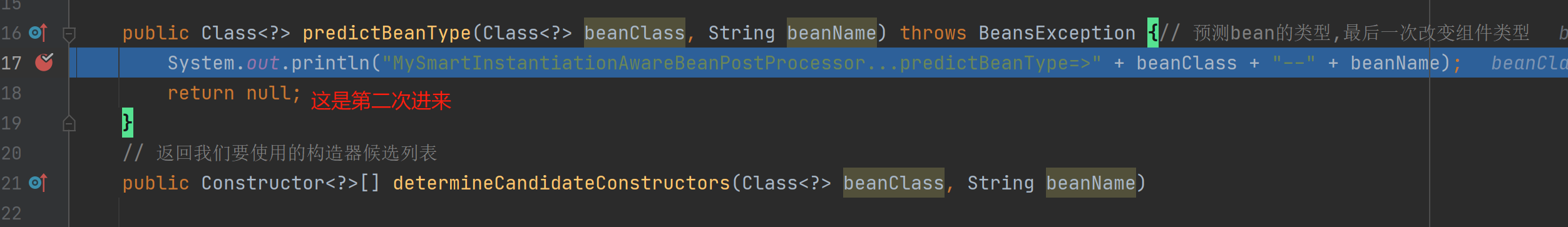

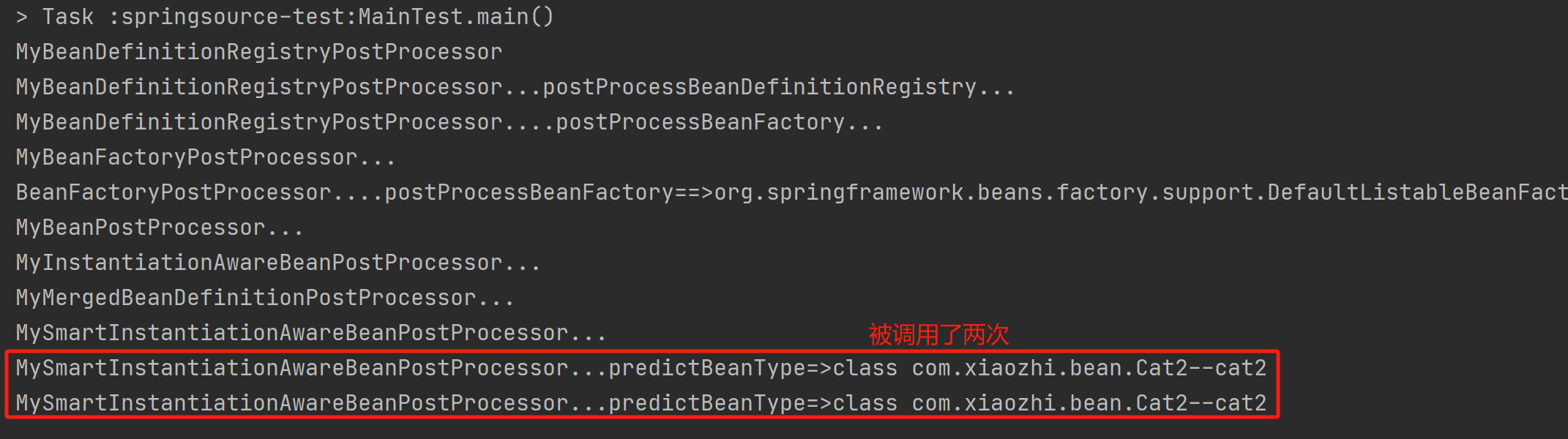

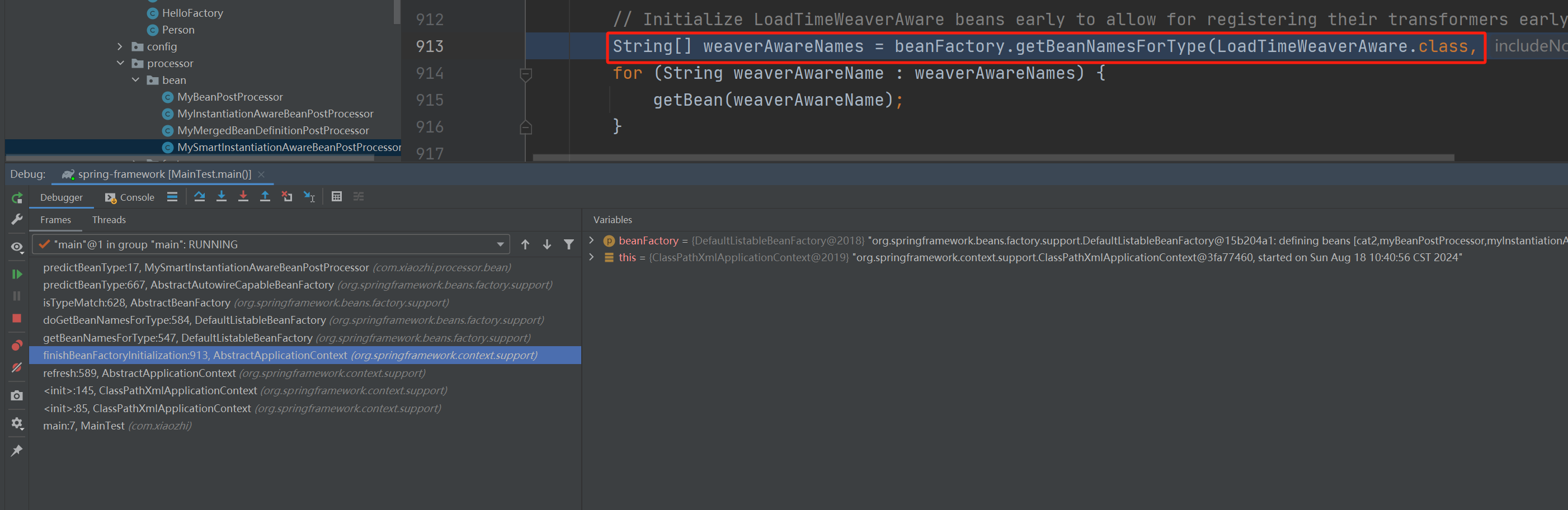

• ⑧. 我们会发现这个predictBeanType方法被调用了两次(一次是在注册监听器的时候被调用registerListeners、另外一次是在finishBeanFactoryInitialization时候被调用[获取LoadTimeWeaverAware这个组件的类型])



③. InstantiationAwareBeanPostProcessor的BeforeInstantiation方法

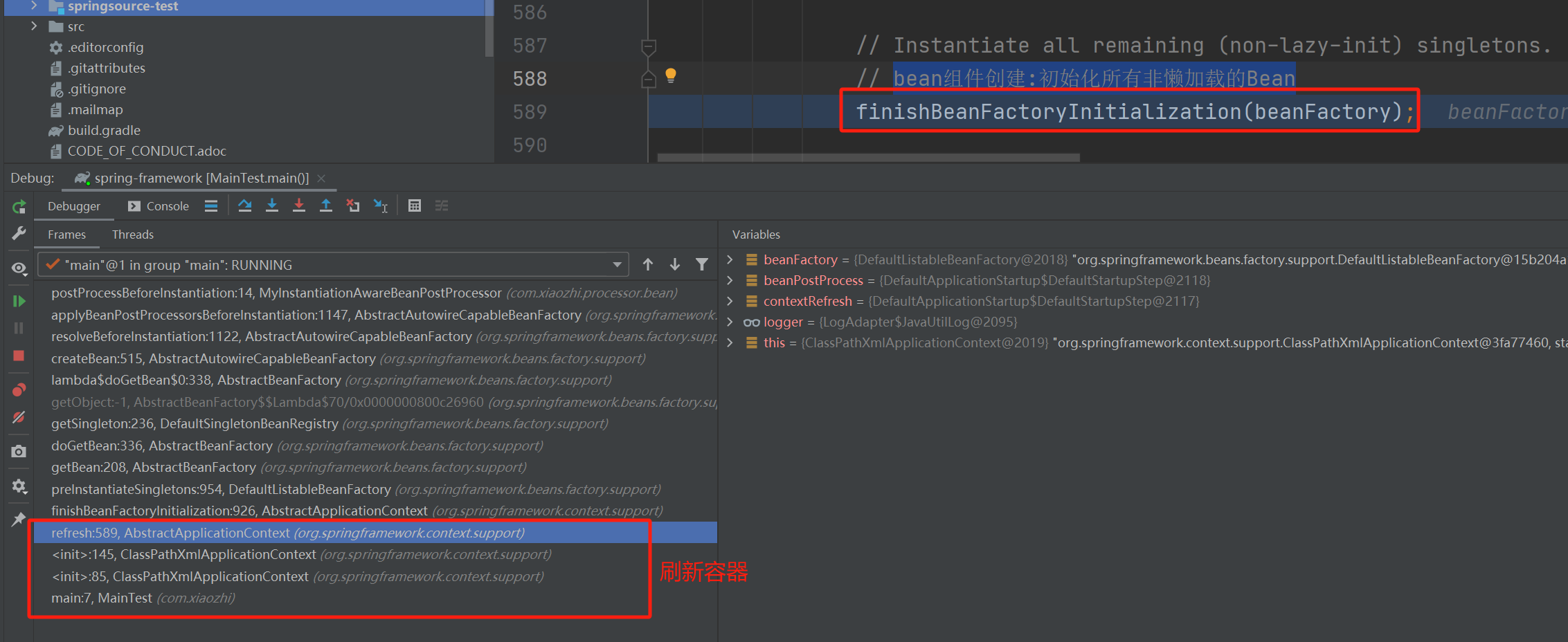

• ①. bean组件创建:初始化所有非懒加载的Bean

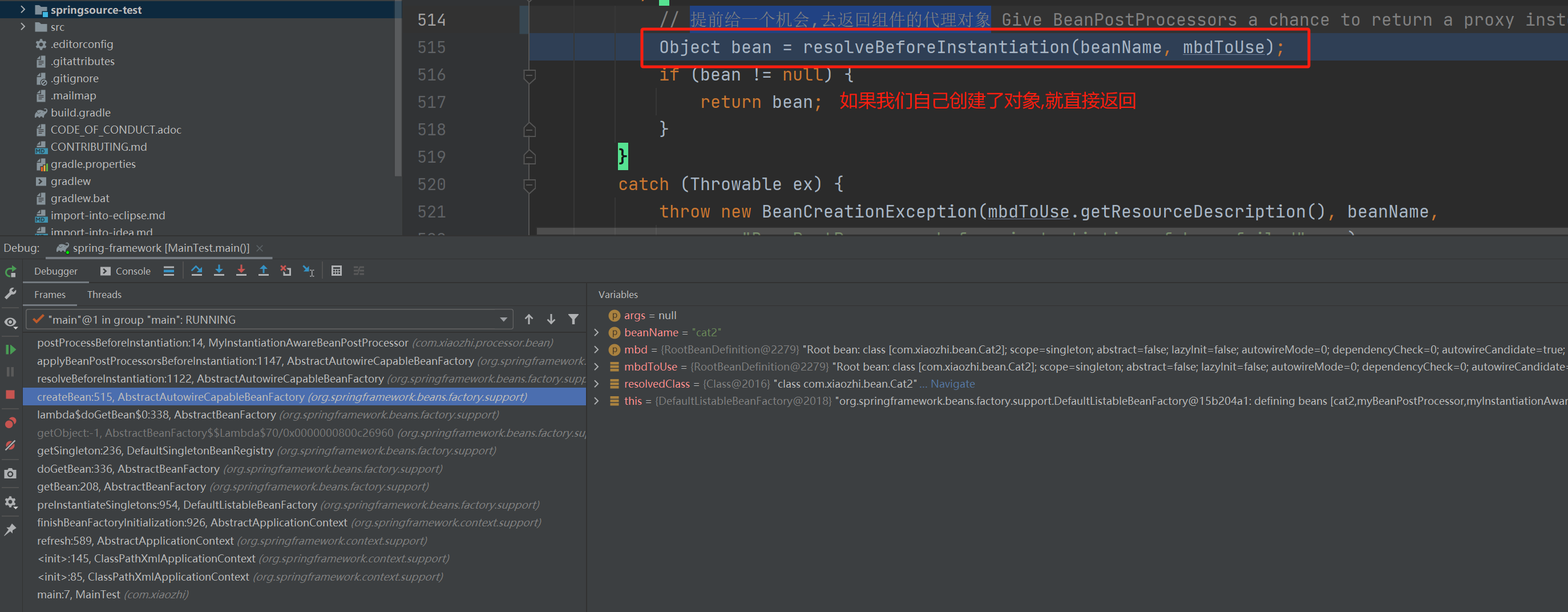

• ②. 提前给一个机会,去返回组件的代理对象

• ③. 调用applyBeanPostProcessorsBeforeInstantiation方法

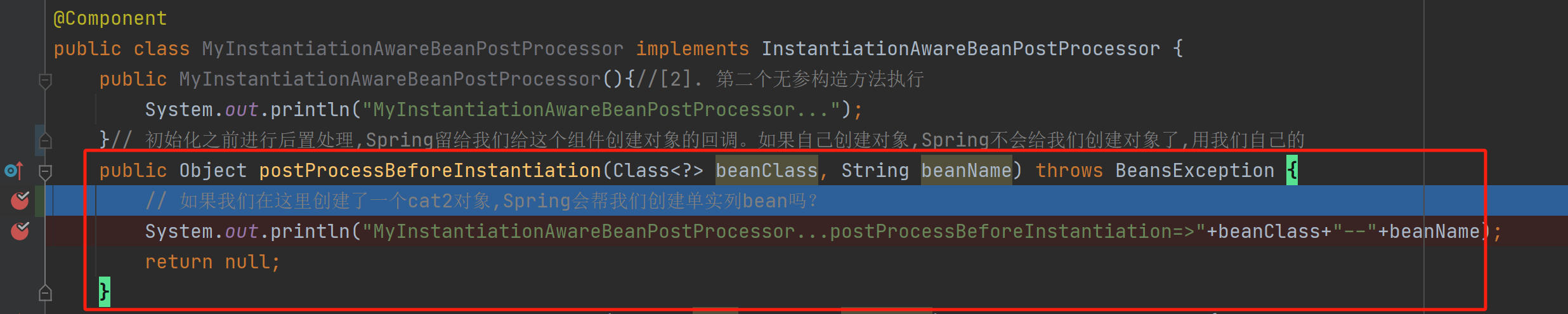

• ④. 初始化之前进行后置处理,Spring留给我们给这个组件创建对象的回调。如果自己创建对象,Spring不会给我们创建对象了,用我们自己的

• ⑤. 如果我们在这里创建了一个cat2对象,Spring会帮我们创建单实列bean吗？

④. SmartInstantiationAwareBeanPostProcessor的determineCandidateConstructors方法

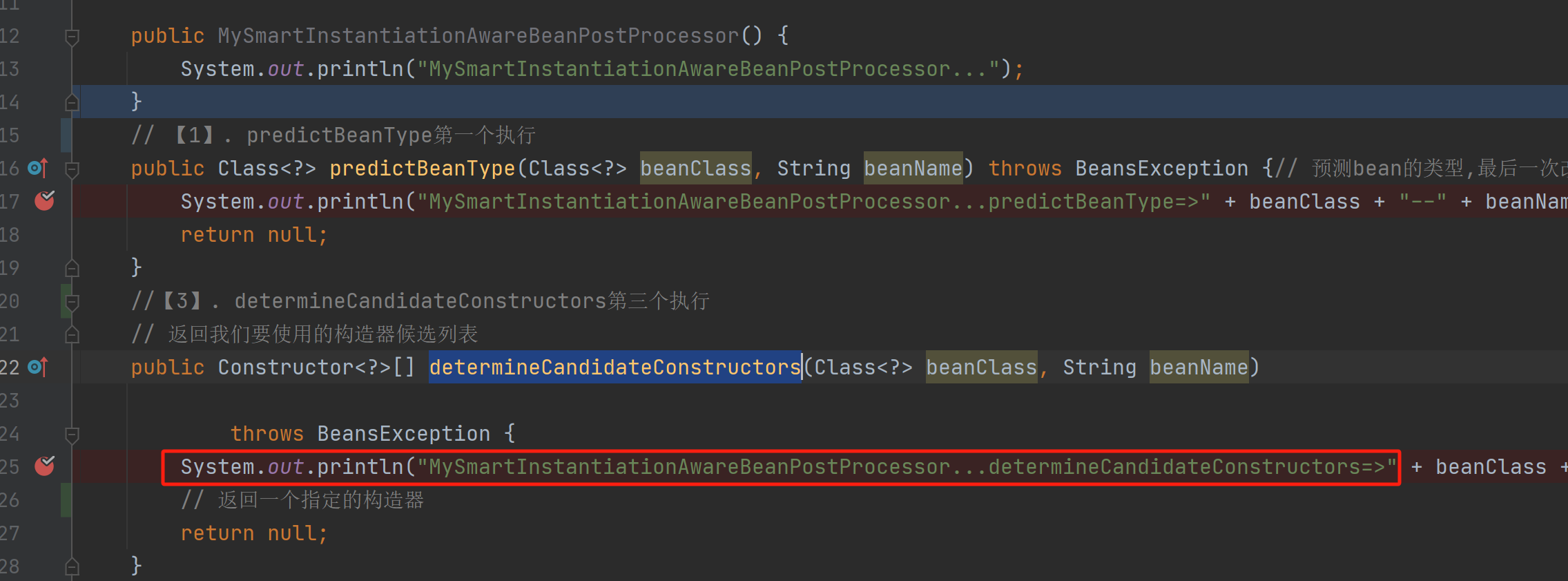

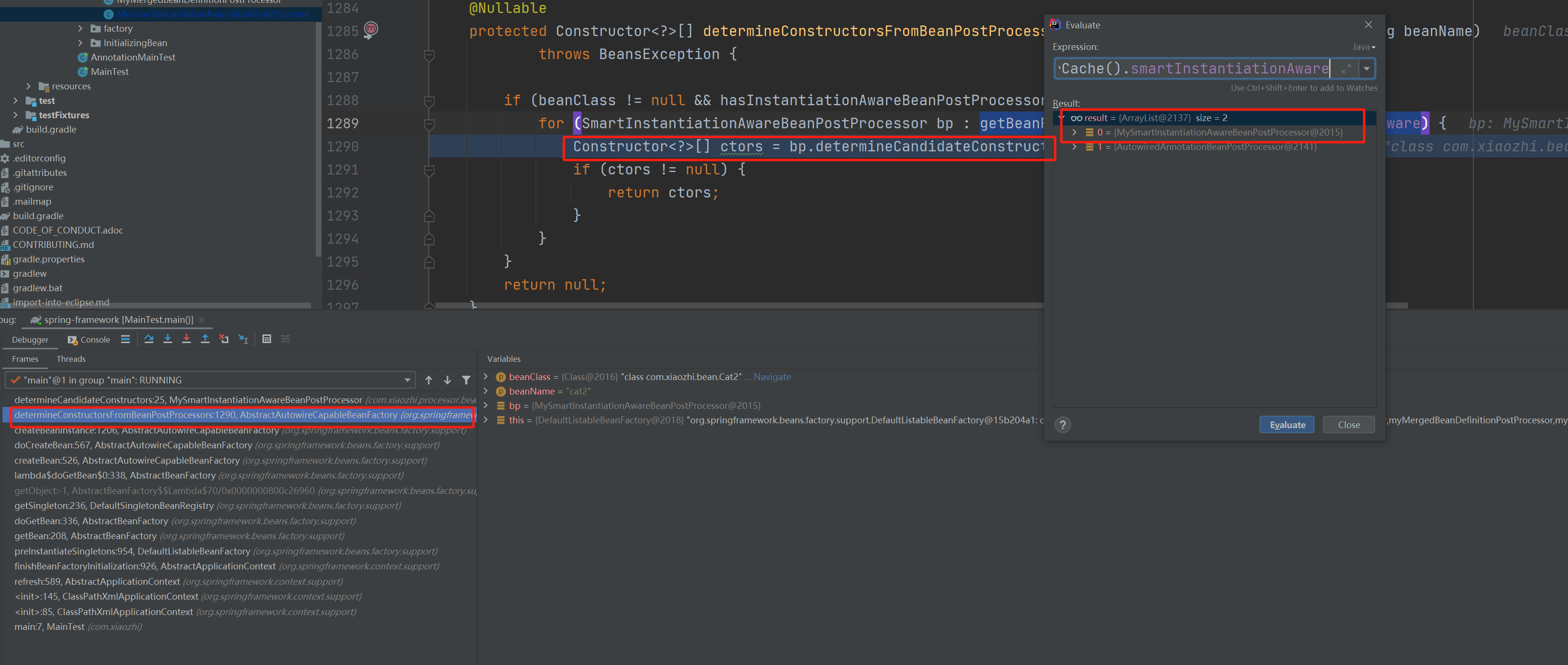

• ①. 上面的BeforeInstantiation方法放行后来到了determineCandidateConstructors方法

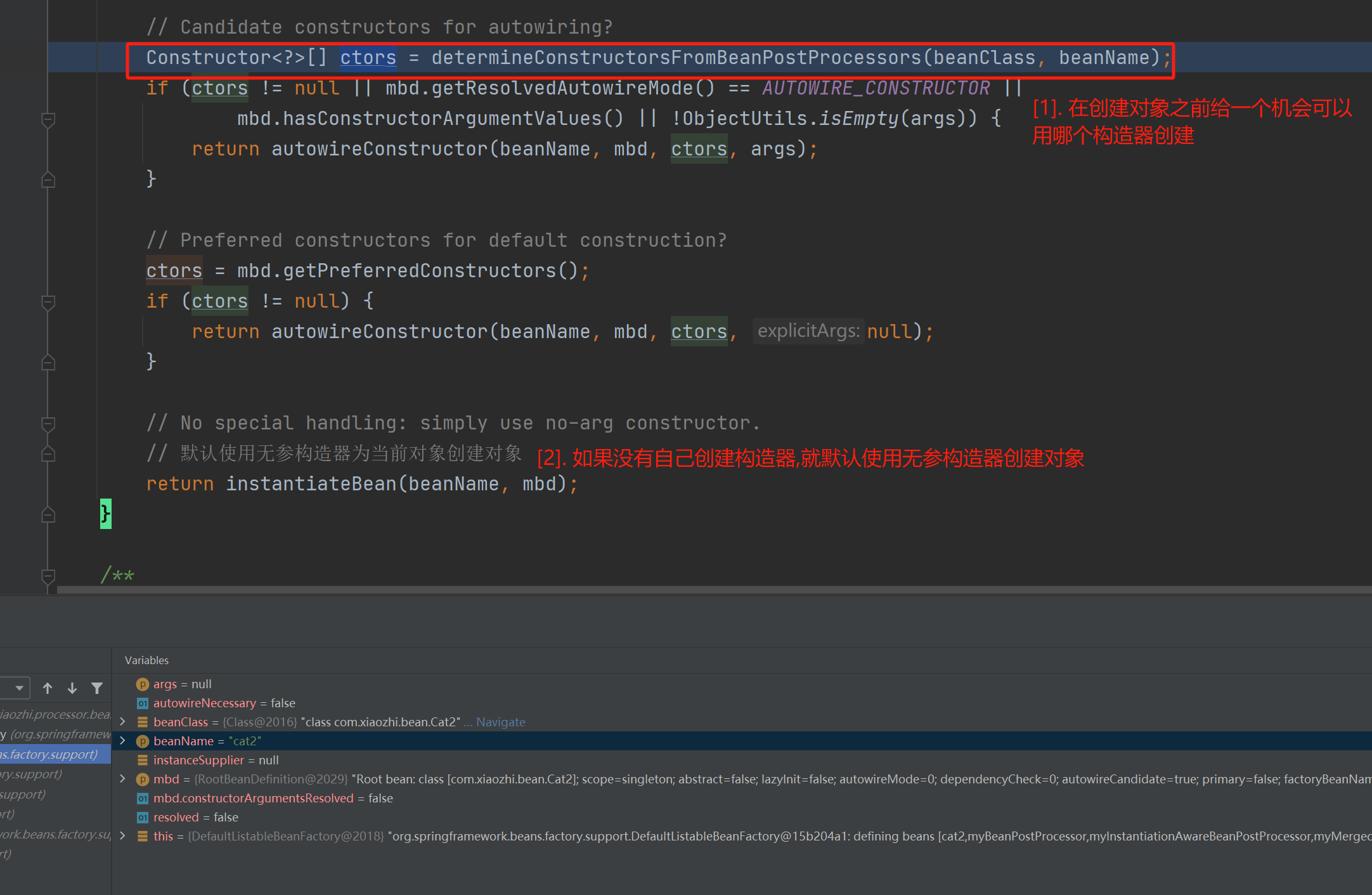

• ②. 创建对象之前给一个机会可以用哪个构造器创建对象,如果没有给,那么我们默认使用无参构造器创建对象


protected BeanWrapper createBeanInstance(String beanName, RootBeanDefinition mbd, @Nullable Object[] args) {//获取Bean的类型 Make sure bean class is actually resolved at this point.Class<?> beanClass = resolveBeanClass(mbd, beanName);if (beanClass != null && !Modifier.isPublic(beanClass.getModifiers()) && !mbd.isNonPublicAccessAllowed()) {throw new BeanCreationException(mbd.getResourceDescription(), beanName,"Bean class isn't public, and non-public access not allowed: " + beanClass.getName());}// 定义Bean的提供者Supplier<?> instanceSupplier = mbd.getInstanceSupplier();if (instanceSupplier != null) {return obtainFromSupplier(instanceSupplier, beanName);}// 使用工厂方法 @Bean方式可能会调用此方法进行创建if (mbd.getFactoryMethodName() != null) {return instantiateUsingFactoryMethod(beanName, mbd, args);}// Shortcut when re-creating the same bean...boolean resolved = false;boolean autowireNecessary = false;if (args == null) {synchronized (mbd.constructorArgumentLock) {if (mbd.resolvedConstructorOrFactoryMethod != null) {resolved = true;autowireNecessary = mbd.constructorArgumentsResolved;}}}if (resolved) {if (autowireNecessary) {return autowireConstructor(beanName, mbd, null, null);}else {return instantiateBean(beanName, mbd);}}//后置处理器有机会在这里决定当前bean用哪个构造器 Candidate constructors for autowiring?Constructor<?>[] ctors = determineConstructorsFromBeanPostProcessors(beanClass, beanName);if (ctors != null || mbd.getResolvedAutowireMode() == AUTOWIRE_CONSTRUCTOR ||mbd.hasConstructorArgumentValues() || !ObjectUtils.isEmpty(args)) {return autowireConstructor(beanName, mbd, ctors, args);// 构造器方式的自动注入}// Preferred constructors for default construction?ctors = mbd.getPreferredConstructors();if (ctors != null) {return autowireConstructor(beanName, mbd, ctors, null);}// No special handling: simply use no-arg constructor.// 默认使用无参构造器为当前对象创建对象return instantiateBean(beanName, mbd);
}

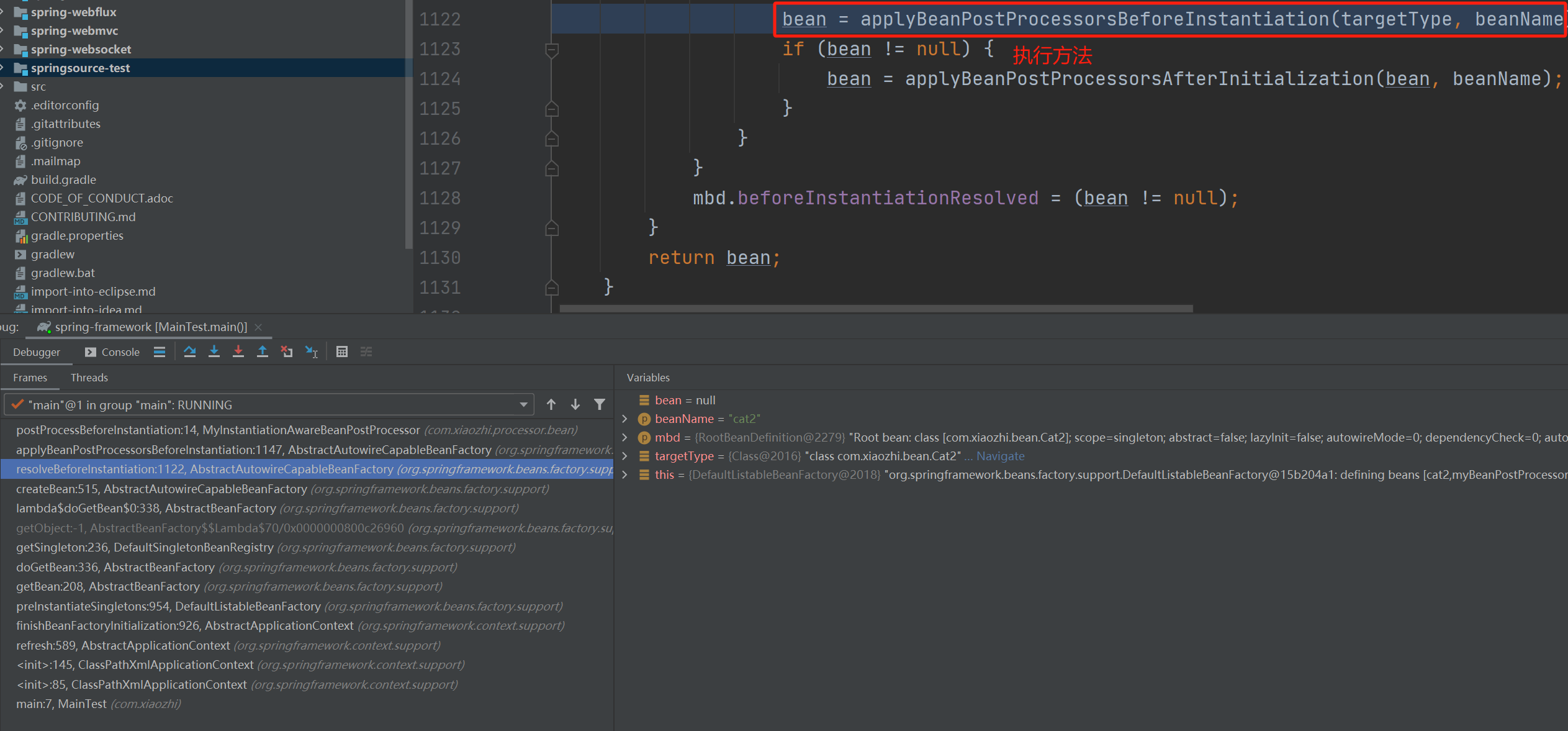

• ③. 执行方法
