LVGL网格布局测试

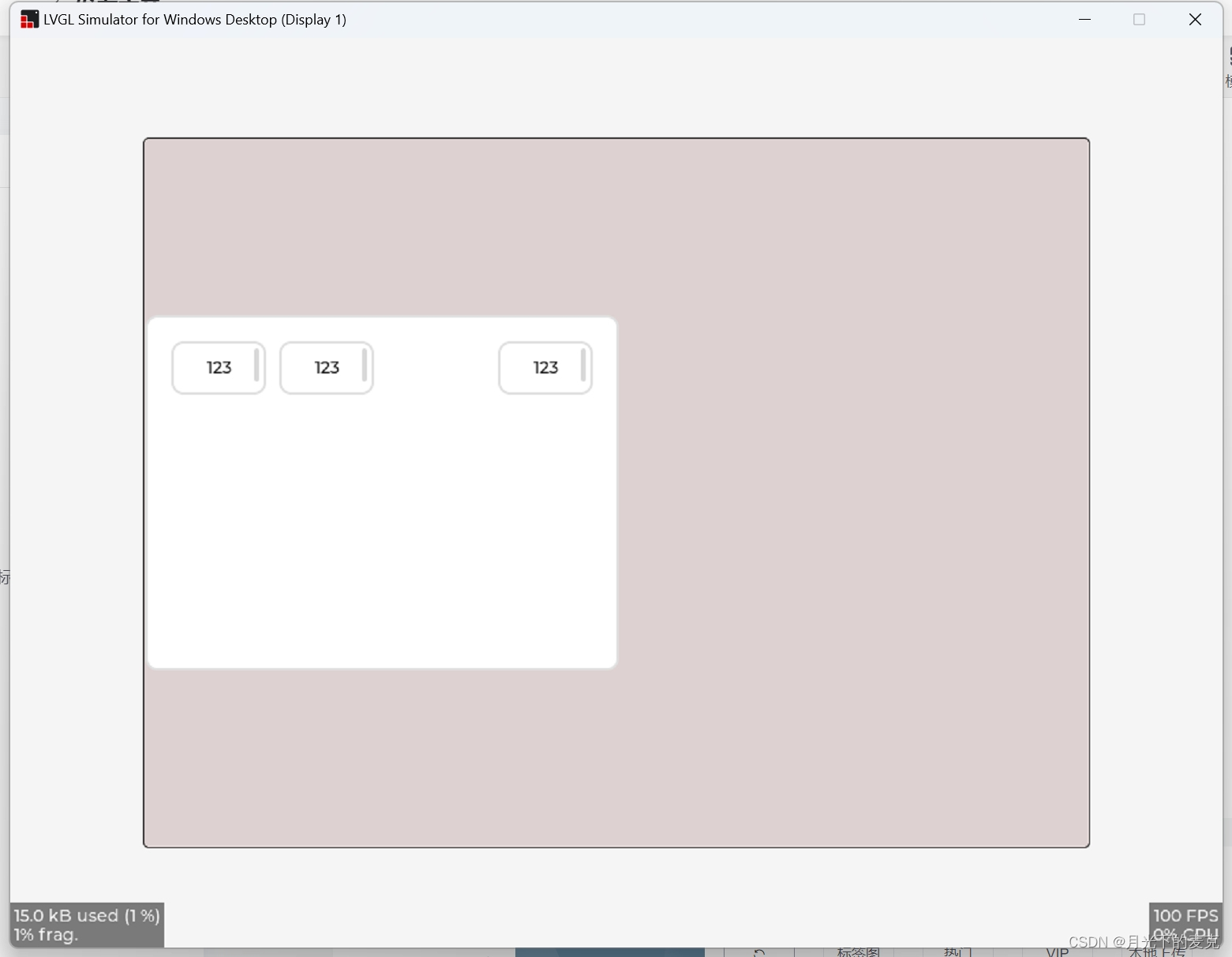

一、测试1

    static lv_coord_t col_dsc[] = { 80, 80, LV_GRID_FR(1), LV_GRID_TEMPLATE_LAST };static lv_coord_t row_dsc[] = { 45, LV_GRID_TEMPLATE_LAST };lv_obj_t* page = lv_img_create(lv_scr_act());lv_obj_center(page);lv_obj_set_size(page, 800, 600);isu_set_obj_default_style(page);lv_obj_t* cont = lv_obj_create(page);lv_obj_set_size(cont, 400, 300);lv_obj_align(cont, LV_ALIGN_LEFT_MID, 0, 0);lv_obj_set_layout(cont, LV_LAYOUT_GRID);lv_obj_set_style_grid_column_dsc_array(cont, col_dsc, 0);lv_obj_set_style_grid_row_dsc_array(cont, row_dsc, 0);for (int i = 0; i < 3; i++){lv_obj_t* label_cont = lv_obj_create(cont);lv_obj_t*label = lv_label_create(label_cont);lv_label_set_text(label, "123");lv_obj_set_grid_cell(label_cont, LV_GRID_ALIGN_START, i, 1, LV_GRID_ALIGN_CENTER, 0, 1);}

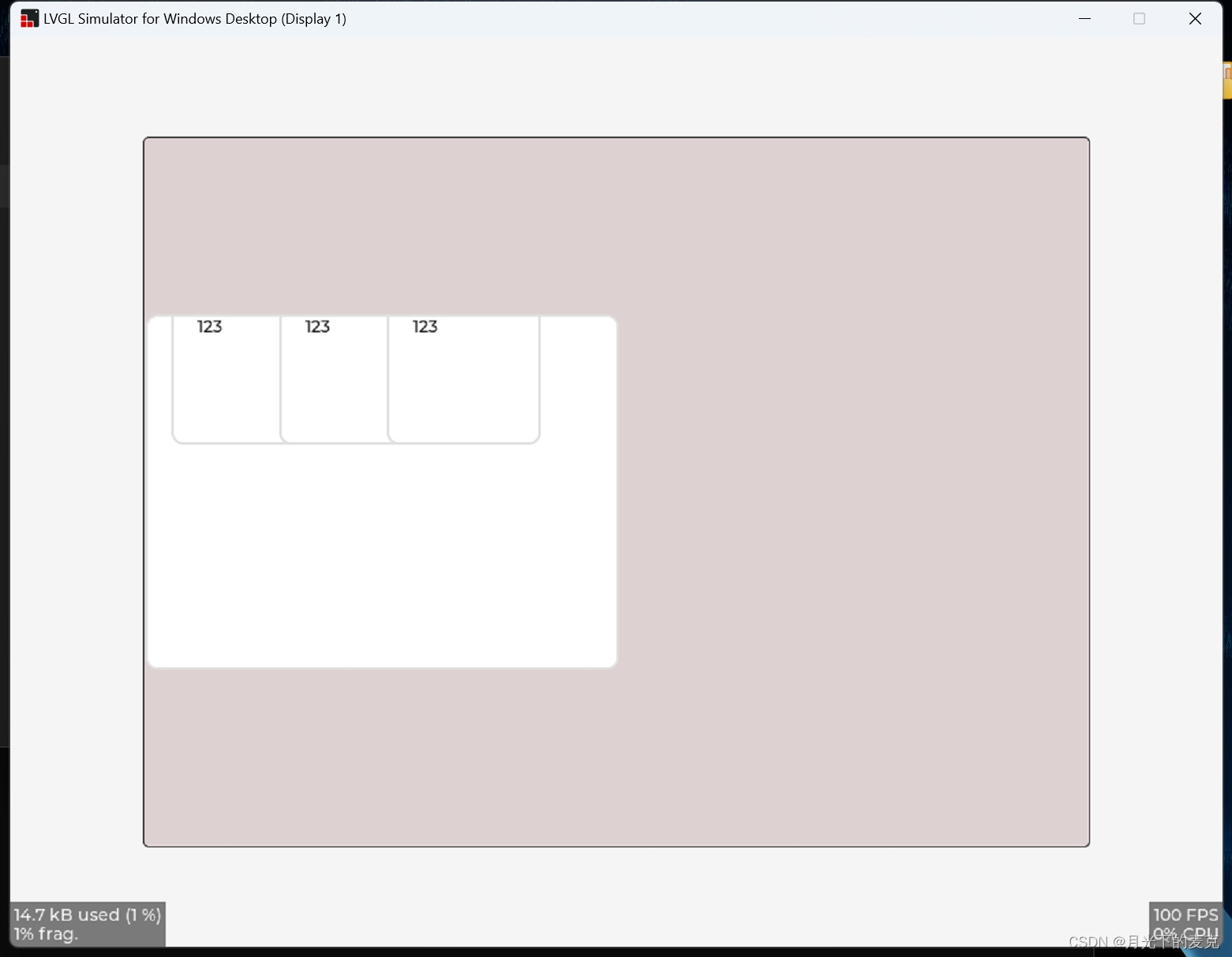

二、测试2

    LV_LOG_WARN("layout_test");static lv_coord_t col_dsc[] = { 80, 80, LV_GRID_FR(1), LV_GRID_TEMPLATE_LAST };static lv_coord_t row_dsc[] = { 45, LV_GRID_TEMPLATE_LAST };lv_obj_t* page = lv_img_create(lv_scr_act());lv_obj_center(page);lv_obj_set_size(page, 800, 600);isu_set_obj_default_style(page);lv_obj_t* cont = lv_obj_create(page);lv_obj_set_size(cont, 400, 300);lv_obj_align(cont, LV_ALIGN_LEFT_MID, 0, 0);//设置cont左中对齐lv_obj_set_layout(cont, LV_LAYOUT_GRID);lv_obj_set_style_grid_column_dsc_array(cont, col_dsc, 0);lv_obj_set_style_grid_row_dsc_array(cont, row_dsc, 0);for (int i = 0; i < 3; i++){lv_obj_t* label_cont = lv_obj_create(cont);lv_obj_set_size(label_cont, 80, 45);lv_obj_t* label = lv_label_create(label_cont);lv_obj_center(label);lv_label_set_text(label, "123");if (i == 2){lv_obj_set_grid_cell(label_cont, LV_GRID_ALIGN_END, i, 1, LV_GRID_ALIGN_CENTER, 0, 1);}else {lv_obj_set_grid_cell(label_cont, LV_GRID_ALIGN_START, i, 1, LV_GRID_ALIGN_CENTER, 0, 1);}}

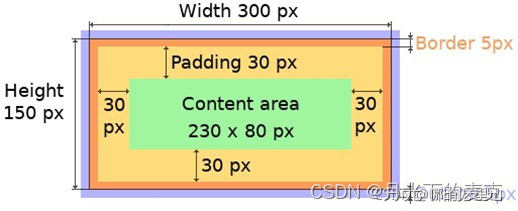

1，在不指定cont的style情况下，cont默认是存在padding的，所以label_cont在cont内部的左侧与上边存在空隙。若要消除这种空隙，则需要给cont的pad致0。

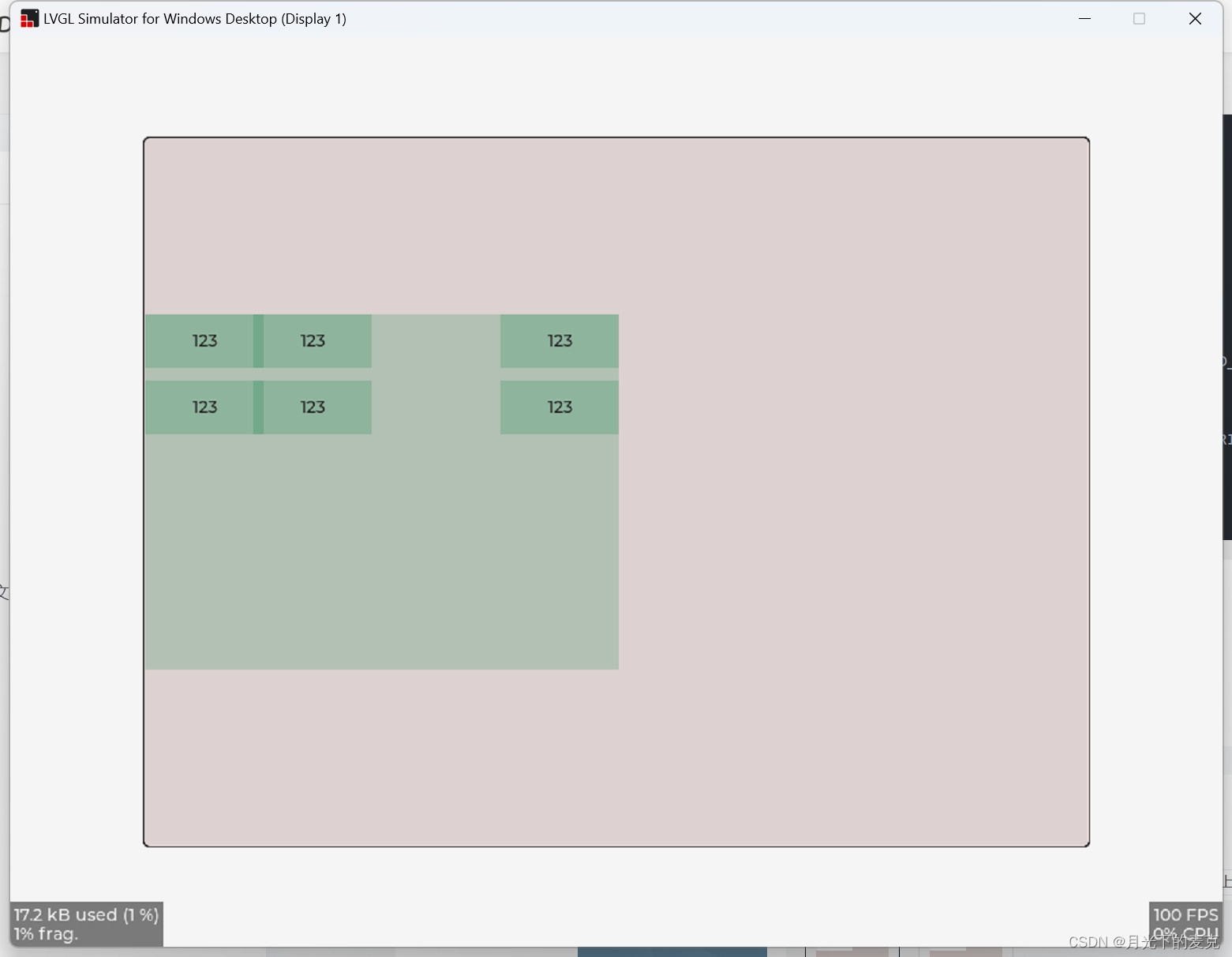

三、测试3

    LV_LOG_WARN("layout_test");static lv_coord_t col_dsc[] = { 80, 80, LV_GRID_FR(1), LV_GRID_TEMPLATE_LAST };static lv_coord_t row_dsc[] = { 45, 45, LV_GRID_TEMPLATE_LAST };static lv_style_t style_control;if (!(style_control.sentinel == LV_STYLE_SENTINEL_VALUE && style_control.prop_cnt > 1)){lv_style_init(&style_control);}else{lv_style_reset(&style_control);}lv_style_set_radius(&style_control, 0);lv_style_set_pad_all(&style_control, 0);lv_style_set_border_width(&style_control, 0);lv_style_set_outline_width(&style_control, 0);lv_style_set_bg_color(&style_control, lv_color_make(256, 128, 64));lv_style_set_bg_opa(&style_control, 50);lv_obj_t* page = lv_img_create(lv_scr_act());lv_obj_center(page);lv_obj_set_size(page, 800, 600);isu_set_obj_default_style(page);lv_obj_t* cont = lv_obj_create(page);lv_obj_add_style(cont, &style_control, LV_PART_MAIN);lv_obj_set_size(cont, 400, 300);lv_obj_align(cont, LV_ALIGN_LEFT_MID, 0, 0);//设置cont左中对齐lv_obj_set_layout(cont, LV_LAYOUT_GRID);lv_obj_set_style_grid_column_dsc_array(cont, col_dsc, 0);lv_obj_set_style_grid_row_dsc_array(cont, row_dsc, 0);for (int j = 0; j < 2; j++){for (int i = 0; i < 3; i++){lv_obj_t* label_cont = lv_obj_create(cont);lv_obj_set_size(label_cont, 100, 45);lv_obj_add_style(label_cont, &style_control, LV_PART_MAIN);lv_obj_t* label = lv_label_create(label_cont);lv_obj_center(label);lv_label_set_text(label, "123");if (i == 2){lv_obj_set_grid_cell(label_cont, LV_GRID_ALIGN_END, i, 1, LV_GRID_ALIGN_CENTER, j, 1);}else {lv_obj_set_grid_cell(label_cont, LV_GRID_ALIGN_START, i, 1, LV_GRID_ALIGN_CENTER, j, 1);}}}
